Product Overview
Throughout Canada, the Provincial Ministries of Transportation, the Municipal Engineers Association (MEA), other organizations representing contractors, consulting engineers, manufacturers, and their associations follow specific design specifications and criteria to create consistent transportation designs and reconstructions.
To address the specific needs such as 3% subgrade, superelevation based on lane, shoulder & subgrade relationships, SolidCAD has developed the critical key components for AutoCAD® Civil 3D® to help you drive transportation projects better, faster and more affordable than ever before.
The subassemblies are available for different versions of AutoCAD® Civil 3D® (2014 to 2017).
Superelevation calculations in certain jurisdictions can be tricky because the links of the granular and subgrade (datum) must coordinate with the superelevation of the pavement surface, especially during the transitioning of lane from a normal (tangent) section to the fully superelevated section. The lane shoulder cross-fall is another variable where the relationship between the lane and shoulder crossfalls may not be always linear.
Specifications
1. GenericPavement
The subassembly with 3% subgrade is ideal for roads, intersections and driveways or other similar scenarios with no curb and drain.
2. GenericPavementWithSubdrain

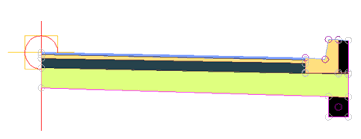

The subassembly with 3% subgrade with curb and drain.
3. GenericPavementWithSubdrainSuper
The subassembly with 3% subgrade, superelevation calculated along with curb and drain.
4. GenericPavementReverseInsert
The subassembly with 3% subgrade going in reverse direction, is ideal for specific scenarios similar to intersection and roundabout design.
SolidCAD has incorporated the critical superelevation relationship table for the lane and shoulder subgrade directly into the individual subassemblies that are used in superelevation.
5. OntarioLaneSuper
The subassembly is design with 3% subgrade, superelvations calculated & assigned based on OPSD (Ontario Standards).
6. OntarioLaneSuperReverseInsert
The Subassembly with 3% subgrade going in reverse directionwith superelevation for use in typical scenarios.
7. OntarioShoulderSuper
The shoulder subassembly is designed with 3% subgrade, superleevations calculated & assigned based on OPSD (Ontario Standards).
- One to three superelevated lanes each direction; superelevation for the 3rd lane is calculated on an offset target alignment.
- All lanes can use offset targets to control width.
- The bottom of thesubgrade layer is held to a maximum slope of -3% by default regardless of the lane superelevation rate.
- Shoulders are superelevated based on the superelevation rate of the outside-most lane on the same side using the Ministry of Transportation (MTO) shoulder superelevation rate table.
- Stripping of the EG surface with critical depth, existing roadbed, and other exclusions applied automatically.
- Automated determination of rock cut/fill or earth cut/fill w/option to override/force one set of parameter values. Also includes options to automatically correct for geometric issues in rock/earth parameter determination.
- Cut/Fill shapes properly account for stripping layers to facilitate quantity calculations.
