The railroad section software designing involves several concepts to be considered in which we find banking and cutting of the railway section playing an integral part. In the practical scenario, during the preliminary surveying, the auto-level used takes the coordinates of the area marking up the troughs and depressions with respect to the mean sea level considered.

These coordinates are further noted down and processed on an excel sheet which is later produced as a drawing format. Again the manual drafting of the drawing in CAD platform (replacing the stereotype hand drawings) requires lots of hard work and man-hours to produce the final output. Even after the careful and logical drafting of the railroad section plans there is the margin of errors.

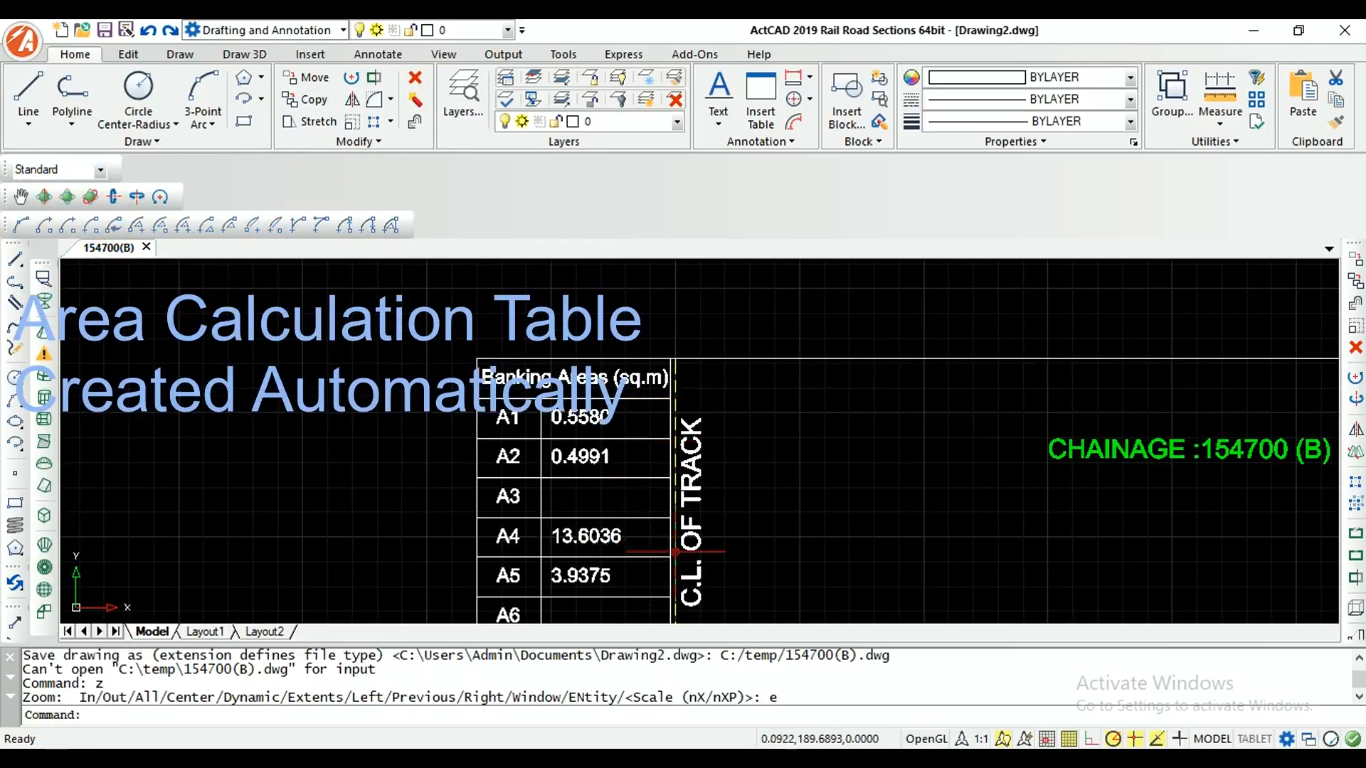

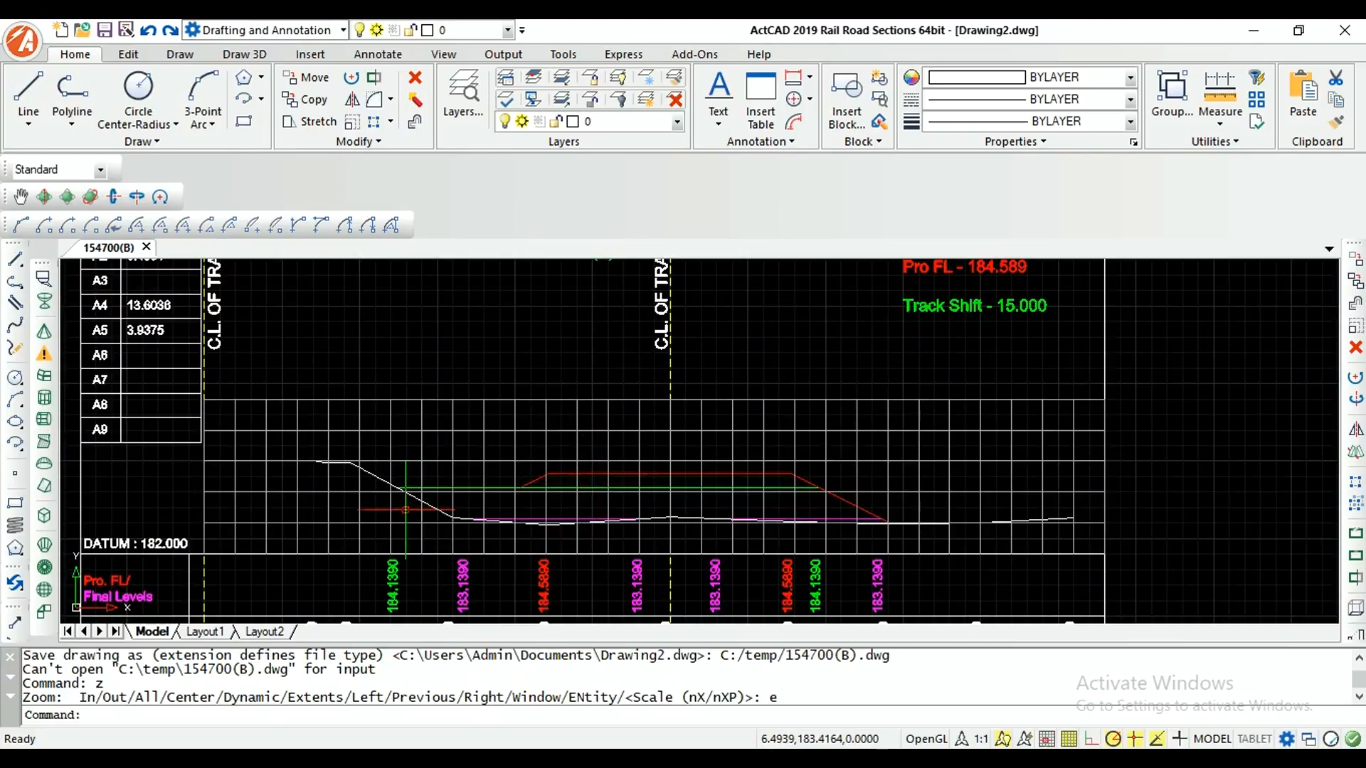

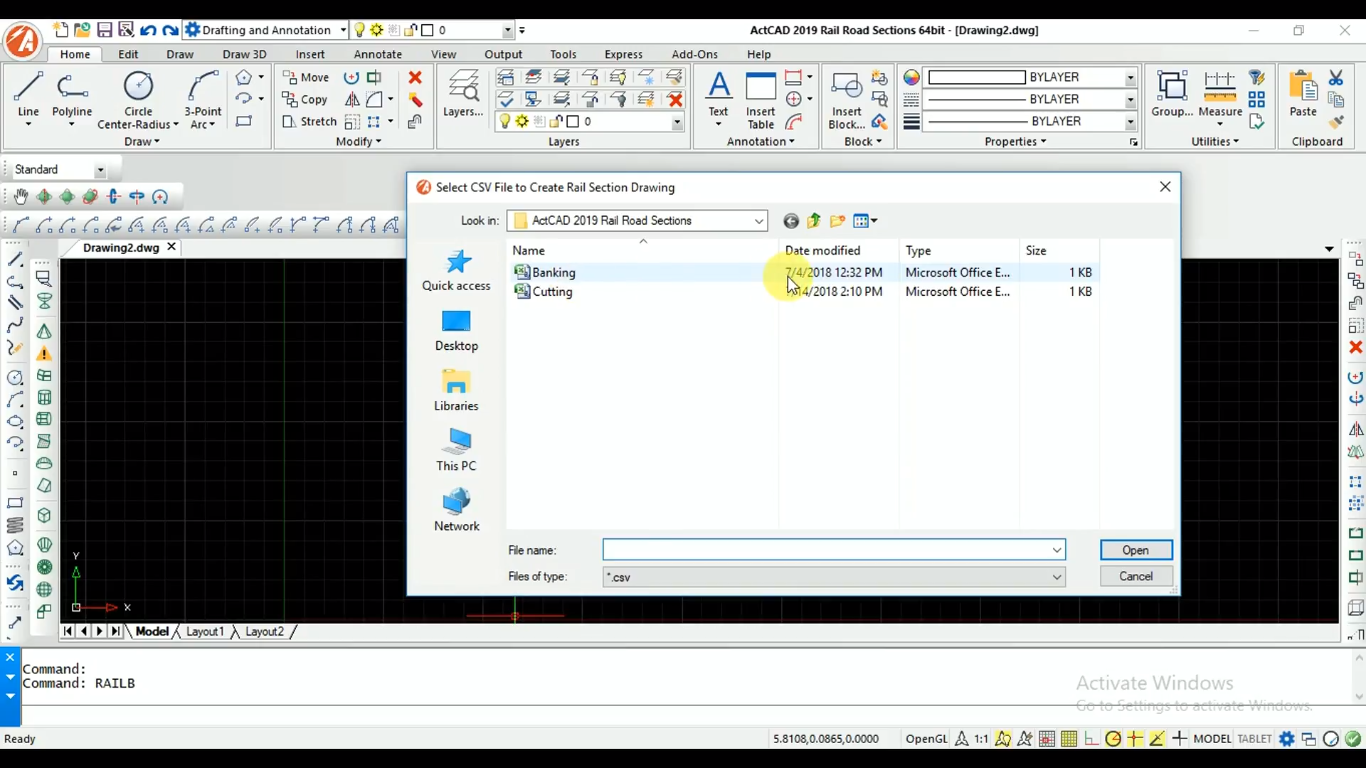

​In order to reduce the hassle experienced in manual drafting with errors, ActCAD v3.0 RailRoad Section software has incorporated the Banking and Cutting Module that just takes the coordinates from the Auto-Level in the Excel Format and drafts down the points to CAD Drawing with just a simple click. And as it is an automated process, you can be assured to have precision and error-free CAD Drawing output.
