Product Overview

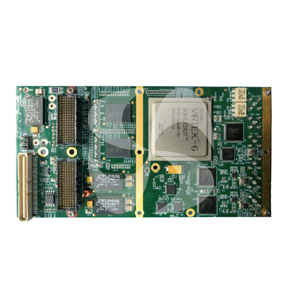

The XMC-Based ADC + DAC Card is a high speed data acquisition and signal generation card based on standard VITA 42.0 XMC form factor (single-width).
This XMC card features two 16-bit ADCs from Analog Devices and a dual channel DAC.
The card also features a Xilinx Virtex-6 FPGA with DSP resources for performing signal processing.
The card is used for analog data acquisition in airborne Radar Digital Signal Processing System. The board may be used in defense data acquisition applications.
Specifications
- Two ADC channels and two DAC channels on XMC form factor
- Available as air-cooled and conduction-cooled XMC board
- The card can accept IF frequencies up to 900 MHz
- Integrated Digital Down Conversion (DDC) IP core
- The card is available as air-cooled as well as conduction cooled card
