Product Overview

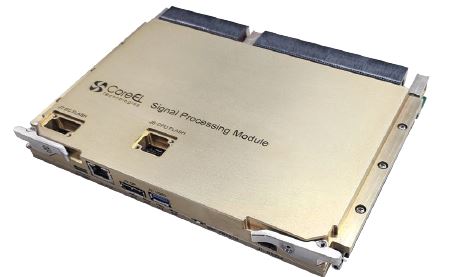

The VPX6U-Intel-i7-SBC is an indigenously developed single-board computer with integrated BIOS and embedded software, optimized for power-efficient solutions in digital signal processing (DSP), artificial intelligence (AI), and computer vision/image processing (CVGIP) applications.
It is highly configurable and can be tailored to meet the specific requirements of different applications. It is available in several variants:
- i7-1185GRE: 4 core 8 thread. 1.8GHz base and 4.4GHz boost frequency
- i5-1145GRE: 4 core 8 thread. 1.5GHz base and 4.1GHz boost frequency
- i3-1115GRE: 2 core 4 thread. 2.2GHz base and 3.9GHz boost frequency
Specifications
CPU
- Intel Core i7 1185GRE, 4 cores/8
- threads 1.80 GHz/4.40 GHz Turbo,
- 12 MB Intel® Smart Cache
- 15W TDP
- Enhanced AI, AVX-512
System Memory
- 2 Channels of LPDDR4x (4266MTPS)
- 32GB Soldered DRAM (16GB each channel)
Storage
- 128GB SATA SLC SSD
- NVMe M.2 2280 SSD Slot
Network Connectivity
- Dual 10G Base KR
- x5 2.5G Base-T Ethernet (1 Port on the Front Fascia)
Data Connectivity
- 4 x4 PCIe Gen3 on the backplane
IOs
- 1x Display portto the Front Fascia
- 2x DisplayPort’sto VPX connector
- 2x UART
- 8 RS422 GPIOs
- 8 CMOS GPIOs
- Dual USB 3.2
- SMBus
Software / Operating System
- UEFI BIOS
- Linux BSP (Validated on Ubuntu &RHEL), VxWorks
- Windows
MISC
- 2x 64MB boot FLASH, with recovery image
- Current, Voltage, and Temperature sensors
- TPM
- BMC
- RTC
- Audio Codec
Input Voltage
- 12V
Power Consumption
- Peak power – 120W
- Thermal power – 70W
Mechanical
- 6U VPX
Environmental
- Operating temperature: -10°C to +55°C
Cooling
- Air & Conduction Cooled
