Product Overview

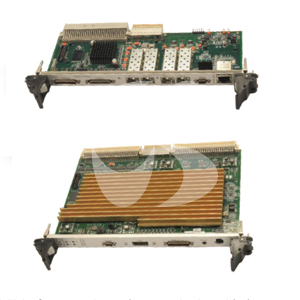

The VME Pulse Processor Boards are a three FPGA based processing solution consisting of two boards; Front IO and Rear IO board. Front IO board is a dual FPGA based board in 6U form factor featuring VME64x interfaces for backplane communication. The Rear IO board is single FPGA based rear transition module with four optical links, RS422 and LVTTL interfaces on Micro-D connector.
Specifications
Front IO board
- Supports data transfer on the VME bus @ > 50 MBytes per second
- Two independent banks of 36-bit QDR II interface, each having 2M2M x4x 36 bits
- Two independent Banks 32-bit DDR, each having 128 MBytes size
Rear IO board
- One 10/100 Ethernet interface
- Four optical serial links, each supporting 3.125 Gbps serial data rate
- 16 RS422 Transmitter and 16 RS422 Receiver ports on Micro-D connectors
- 32 LVTTL IO interfaces on Micro-D connector
