Product Overview

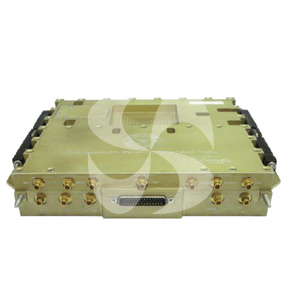

Rugged Waveform Generator Board is used to generate LFM waveforms with bandwidth up to 540 MHz and pulse-width up to 200μs. This module provides two wide bandwidth waveforms.
The waveforms are generated depending on the trigger input signals. The unit can be used for user defined waveform generation.
The center frequency of waveforms are fixed and the pulse width and bandwidth can be varied according to the ‘Bandwidth’ control input.
The board is used part of exciter system in airborne radar application.
Specifications
- Dual channel waveform generation up to 200μs pulse width
- I & Q method for waveform generation supporting up to +/- 270 MHz bandwidth
- Holds up to 16 user selectable waveform patterns per channel
- Waveform and bandwidth selection from external control
- External or internal reference clock
- Health status monitoring over status ports
- External LO for carrier frequency (default filter set for 1600 MHz)
- Health monitoring and built-in self test
