Product Overview

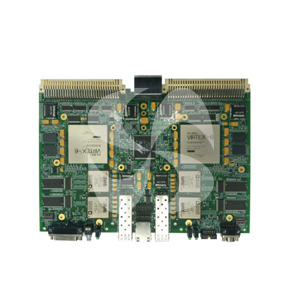

The Quad Digital Signal Processing Board(QuadDSP) is a superior processing platform combing two Virtex-6 SXT FPGAs and four TigerSHARC DSP processors.
The board is of 6U dimension with a VME-VXS hybrid interface for backplane communication.
Quad DSP board comes loaded with embedded applications. Windows API Library is available on host PC for user access over Ethernet or VME interface.
The board is for signal processing in electronic warfare application. It is used in Radar Characterisation and Identification System. It can also be used for other defense applications.
Specifications
Four DSP arranged as two identical DSP clusters on boardenabling flawless parallel processing
- Each cluster is 64-bits wide operating at 100 MHz
- Processing element in each cluster includes two TigerSHARC DSP processor and a Virtex-6 FPGA
- 16 link ports extend from the DSPs (1 per DSP) to the FPGAs operating @ 250 MHz
16 link ports (3 per DSP) dedicated for inter-processor communication operating @ 250 MHz
