Product Overview

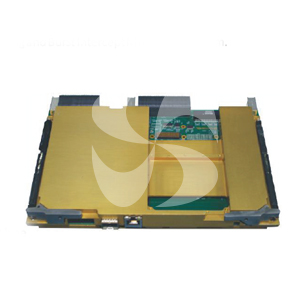

The P4040 Computing Board is a 6U VPX card based on P4040 quad core processor. The board can be used for high end data processing, signal processing and display processing for sonar / radar applications. It has two x4 lane SRIO terminating at backplane as well as 10G optical Ethernet connectivity on the front panel.
The board is used for electronic warfare application in the Frequency Hopping and Burst Intercept Monitoring System.
Specifications
P4040 processor with four e500 cores
128 KB L2 cache with ECC on each core
One 10G Ethernet XAUI Interface
One XMC slot for future expansion
Two RGMII Ethernet Interface
6U VPX card
Two x4 lane SRIO links over backplane with speeds upto 2.5 GHz per lane
Health monitoring - temperature and voltage
Product Reference
