Elint and Display Processor

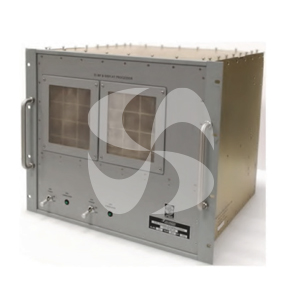

ELINT & Display processor system is air cooled 19 inch chassis consists of Single board computer, Emitter processor card and Pulse processor card.

SBC is powered from 400W cPCI power supply and EP/PPD cards are powered from 800W VPX power supply.

System cooling and minimal acoustic noise is achieved using speed controlled FANs. USB, Ethernet, Optical, UART and power connectors are easily accessible from rear of chassis.

Power supply to SBC and EP/PPD cards are controlled separately for easy usage.

Two free slots in VME back plane and one free slot in VPX backplane are kept for future upgrade of System.
