Product Overview
CAD Exchanger GUI is an easy-to-use 3D viewer and converter to read and write all key 3D formats (Solidworks, NX, JT, IGES, STEP, JT, IFC, FBX, and others).
Specifications
- View: wireframe, shaded, and mixed display styles, isometric or perspective projection, hierarchy of assemblies and parts, hide elements or display their ghosts, find element in the tree,

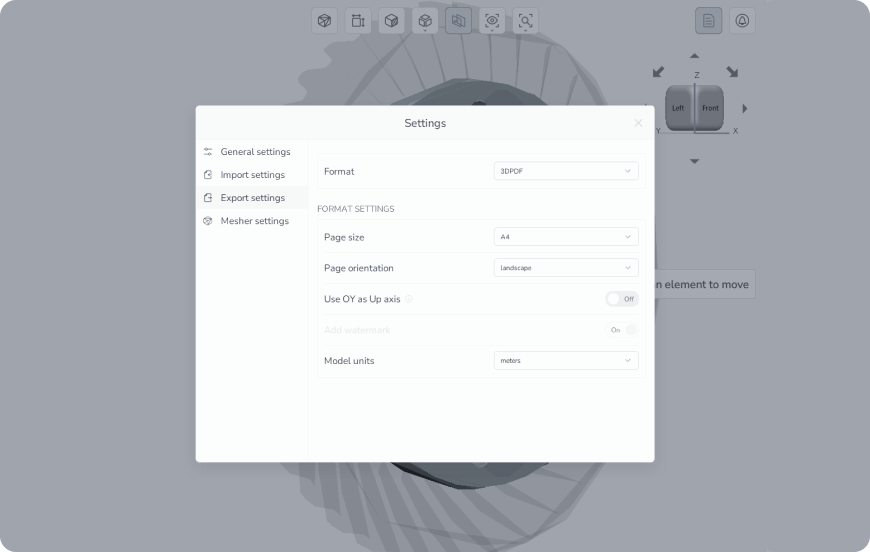

- Conversion: export to any supported format
- Measurements: coordinated, length, distances, radius, diameter, angles between planes or three vertexes
- Sectioning views: add up to three sectioning planes, set up its axis and location
- Exploded views: set explode value to control the spread distance
- Meshes: switch between B-Reps and meshes, visualization and computational meshers
